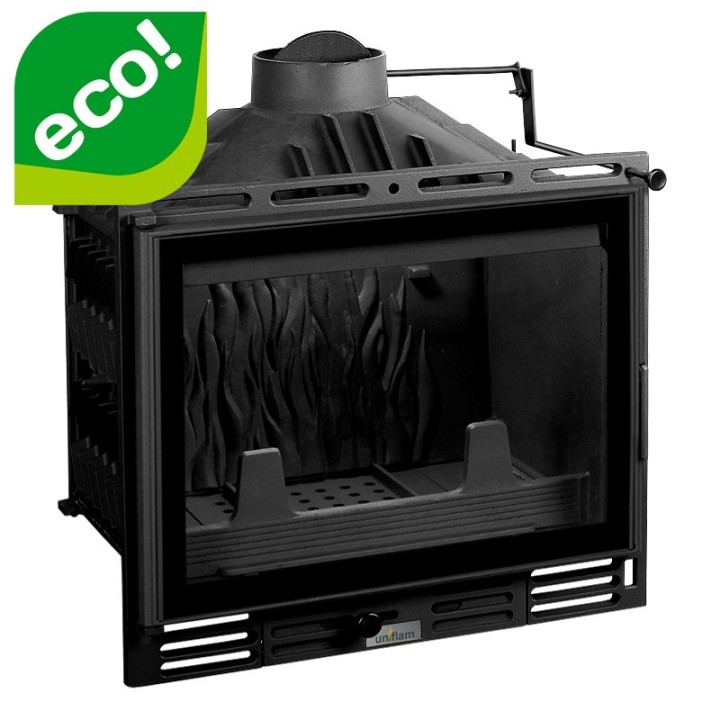

Insert UNIFLAM 600 PLUS ECO with clap, air supply ref. 907-597-DP

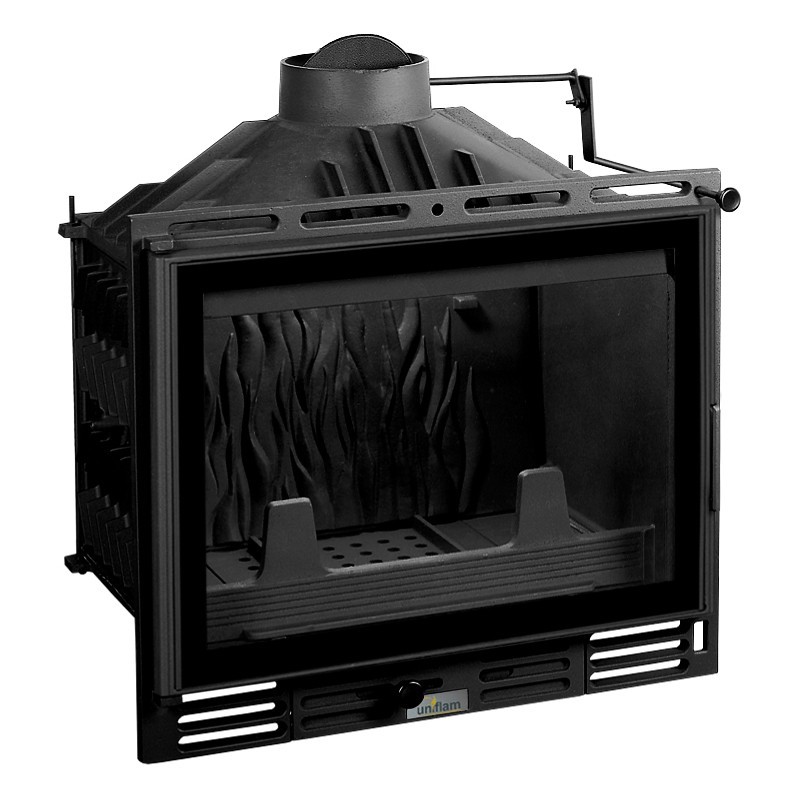

Cast-iron Insert UNIFLAM 600 PLUS ECO with clap, air supply ref. 907-597-DP
- nominal power: 8 kW
- efficiency: 76%
- average CO emission: 0,10%
- average temperature of the combustion gases: 319 °C
- max. length of wood logs: 47 cm
- air supply: Ø100 mm / 150x50 mm
- outlet of the combustion gases diameter: 150 mm
- weight: 89 kg

- clap
- direct air supply from outside
- primary air supply regulation
- vitroceramic windowpane decorated with black trimming
- deflector
- ashbox
- grill
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm BImSchV2
- compliant with the norm EN 13229
- certificate CE
- certificate FLAMME VERTE
- Energy class: A
- manufacturer: UNIFLAM - France

Advantages of the Uniflam Plus fireplace insert

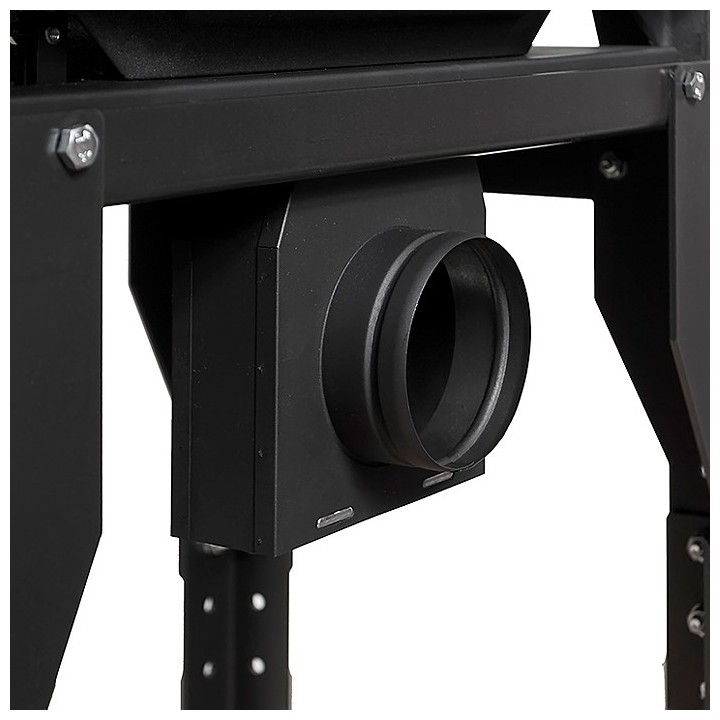

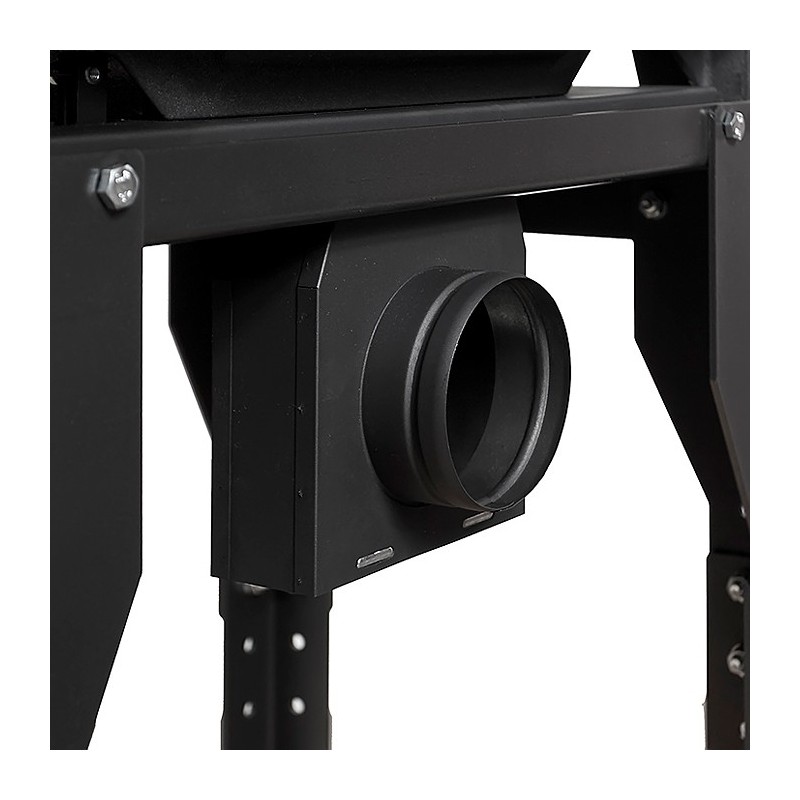

Direct air supply from outside
The insert has been equipped with a direct air supply system from outside. The air can be supplied via a Ø100mm flex duct or a rectangular channel of 150x50mm.

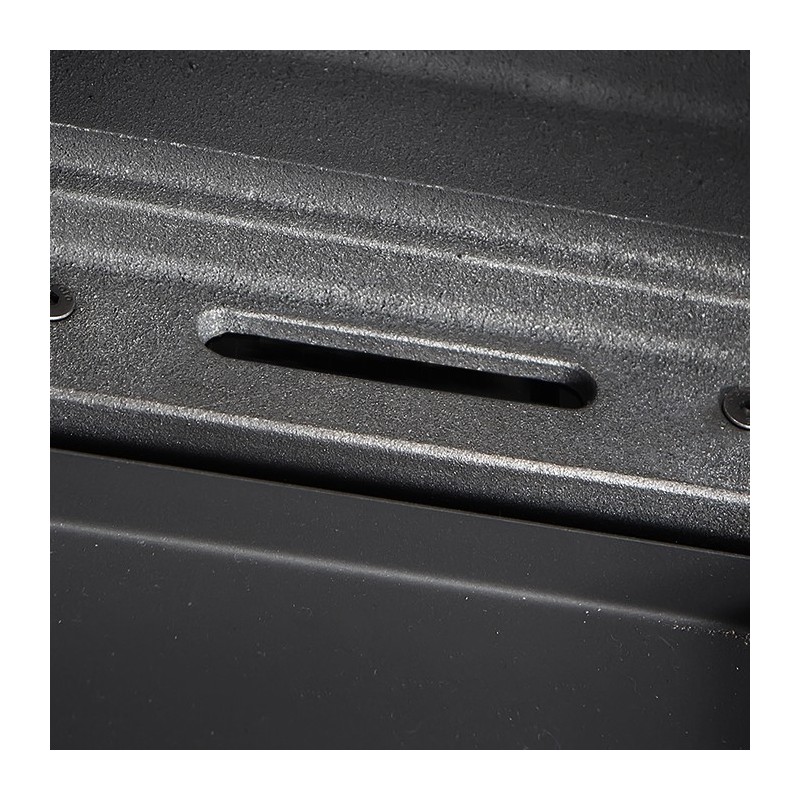

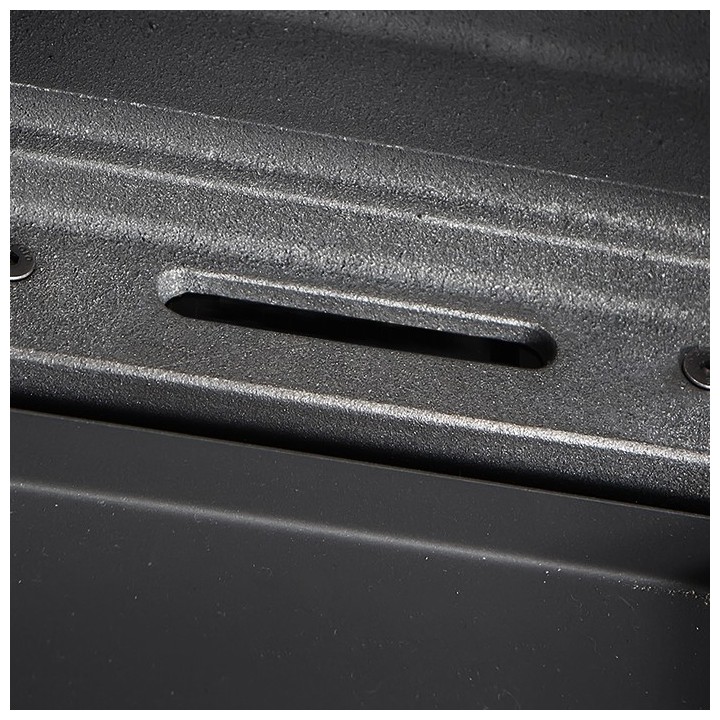

Clap
The clap allows to adjust the chimney draft and control the chimney burning rate. The is placed in the upper part of the insert’s facade.

Easy use
Spacious, slide-out ashtray, cast iron grate and efficient air curtain system make the exploitation and maintenance of such a fireplace insert easy and time-saving.

Wide view of burning wood
Large glasspane with black decoration provide an ideal vision of fire.
