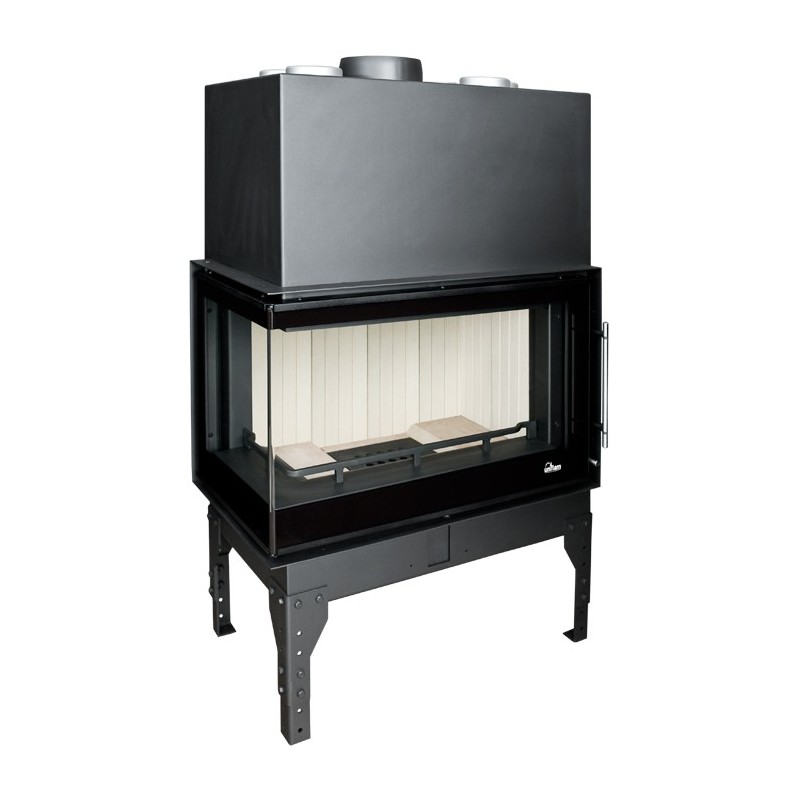

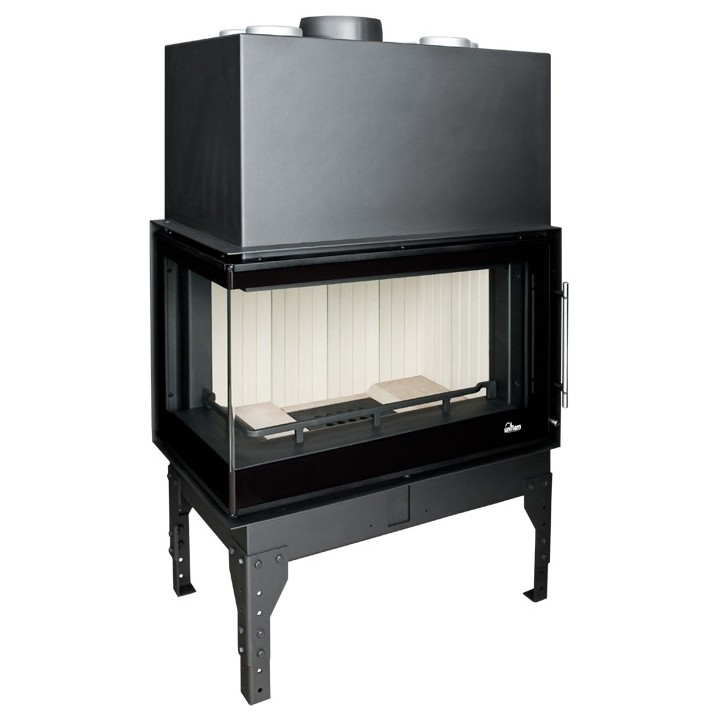

Insert UNIFLAM 860 EVO LBS joint left corner glasspane ref. 260-183

Steel fireplace insert with chammotte
- nominal power: 15 kW
- efficiency: 81%
- average CO emission: <0,089%
- average temperature of the combustion gases: 260 °C
- max. length of wood logs: 55 cm

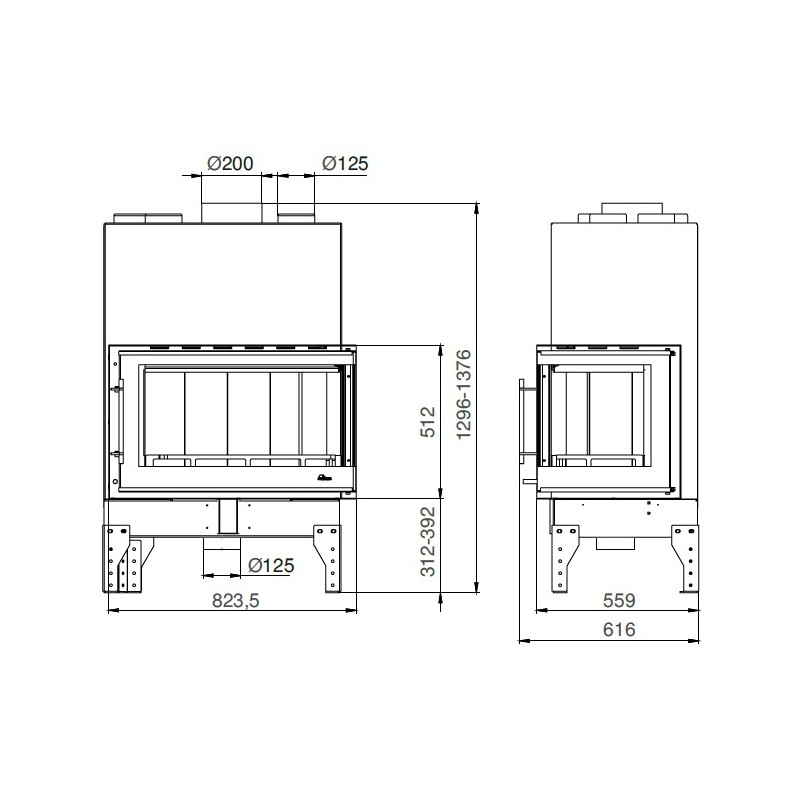

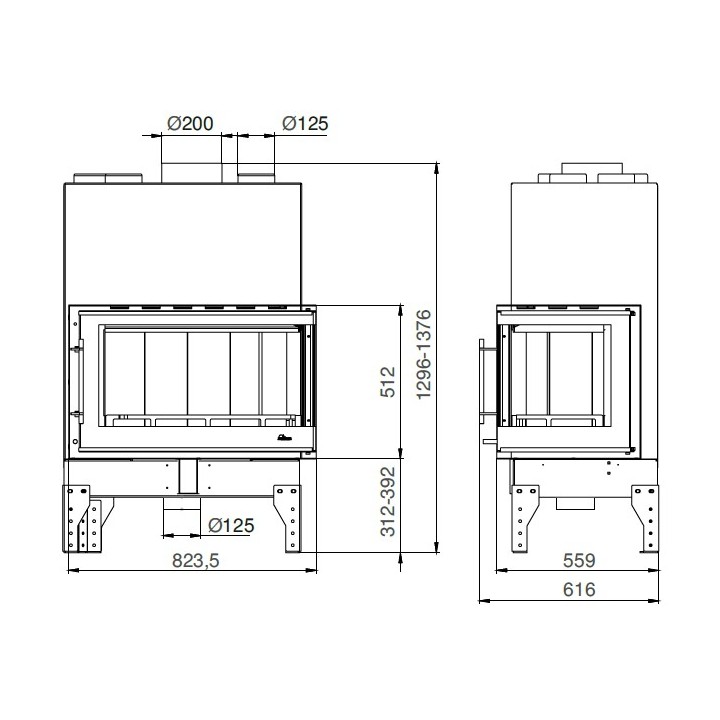

- outlet of the combustion gases diameter: 200 mm
- air supply: Ø125 mm

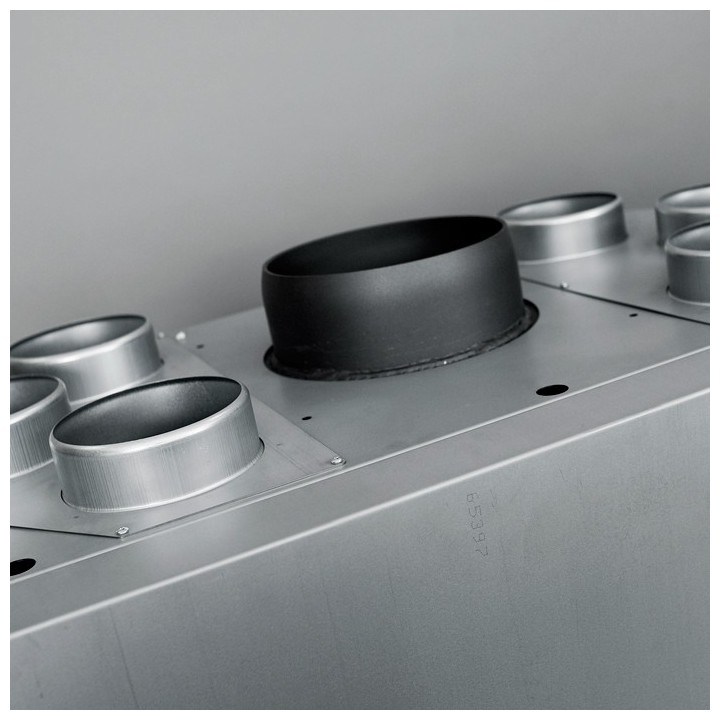

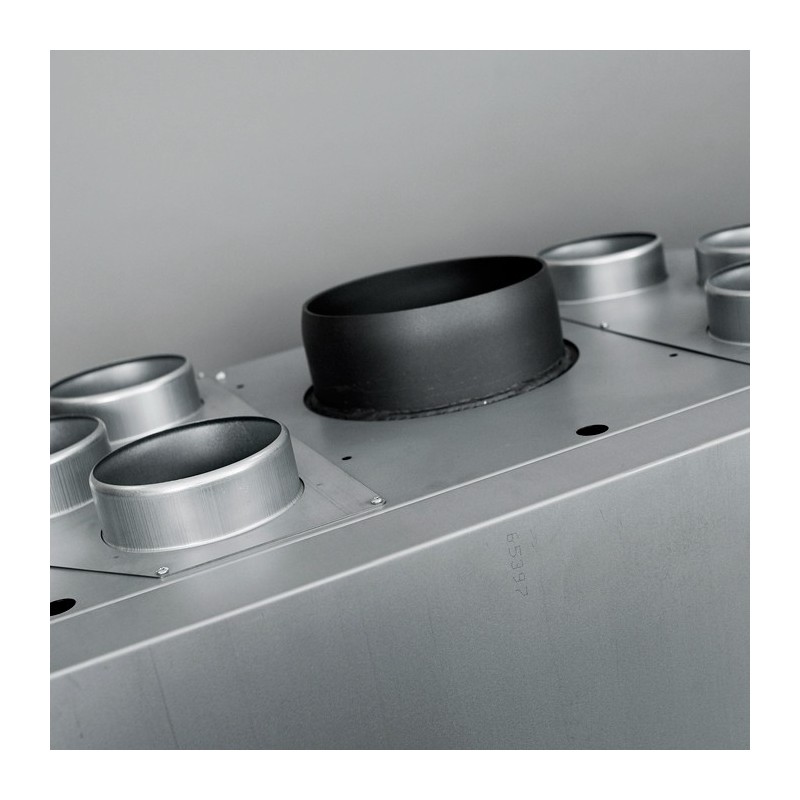

- hot air distributor: 5 x Ø125 mm
- weight: 256 kg

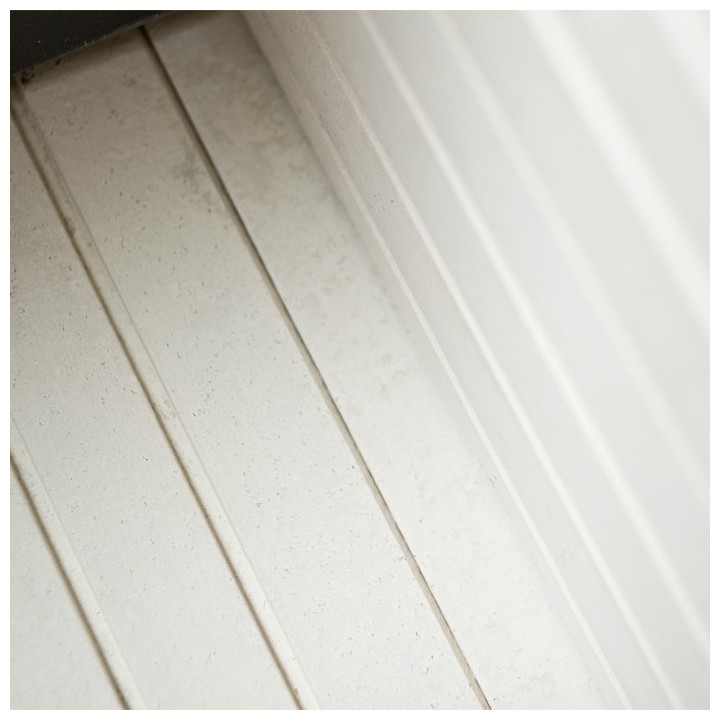

- combustion chamber laid out with chammotte
- perfect for low energy houses
- direct air supply from outside
- air supply regulation

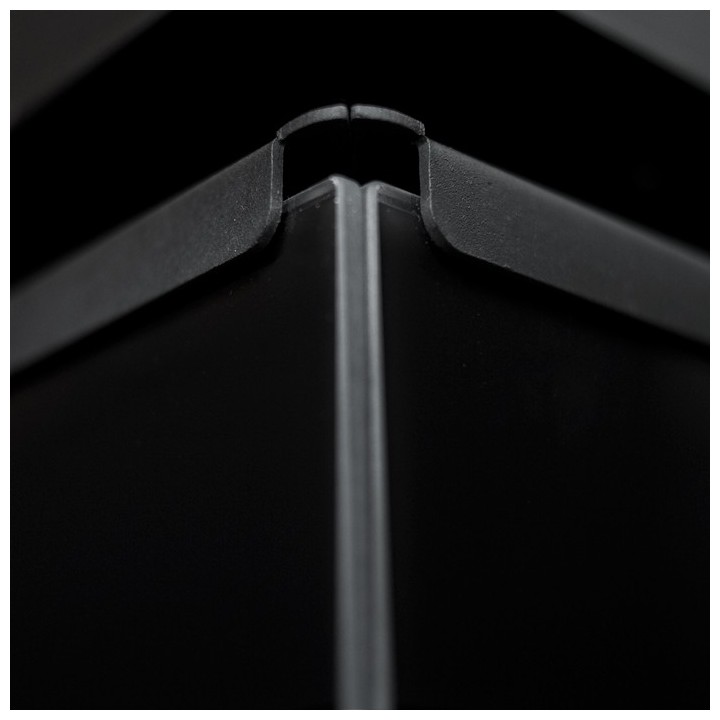

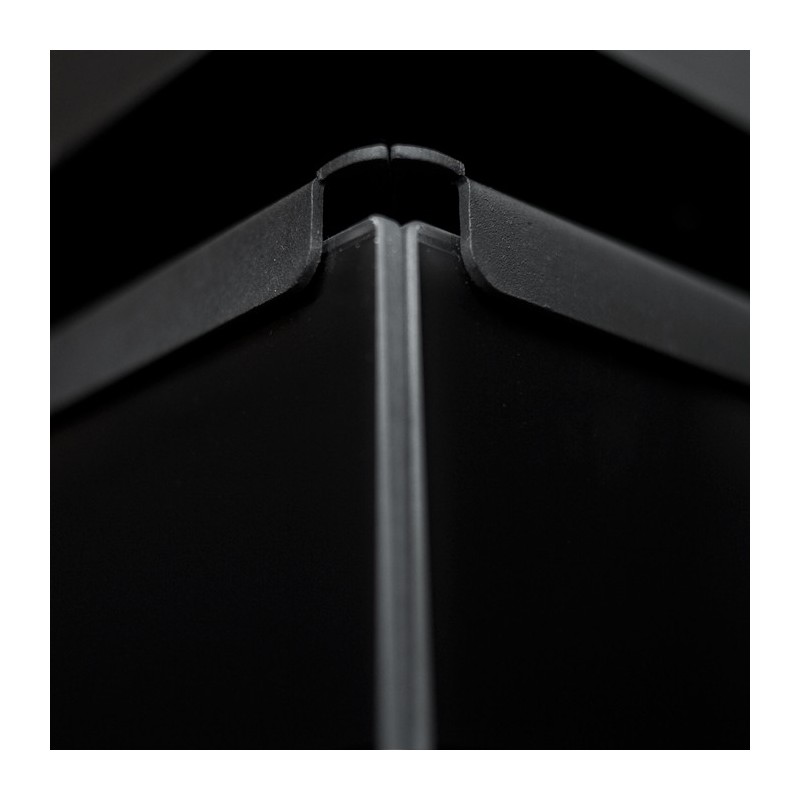

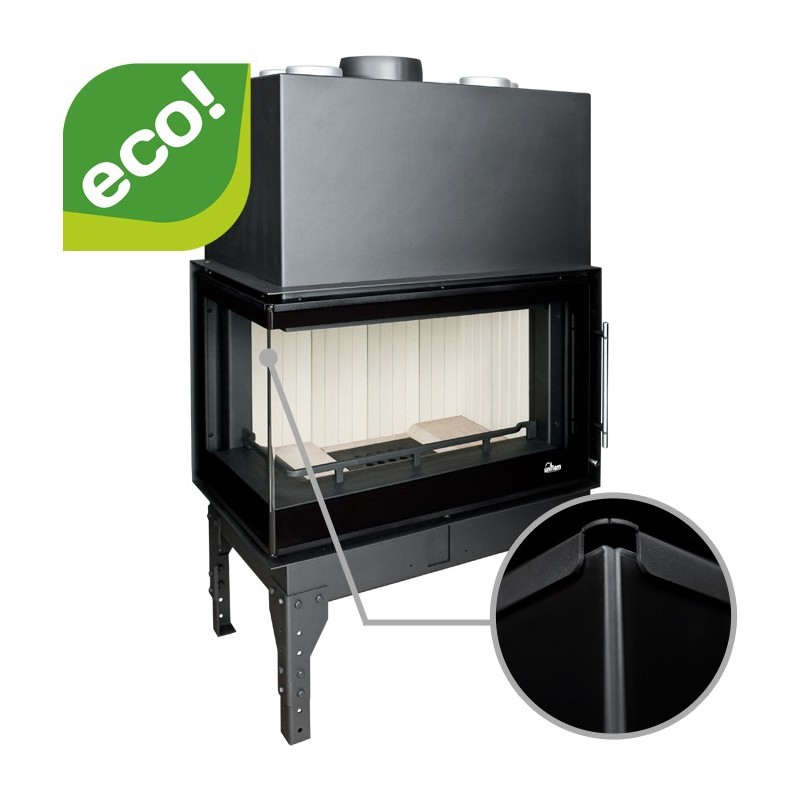

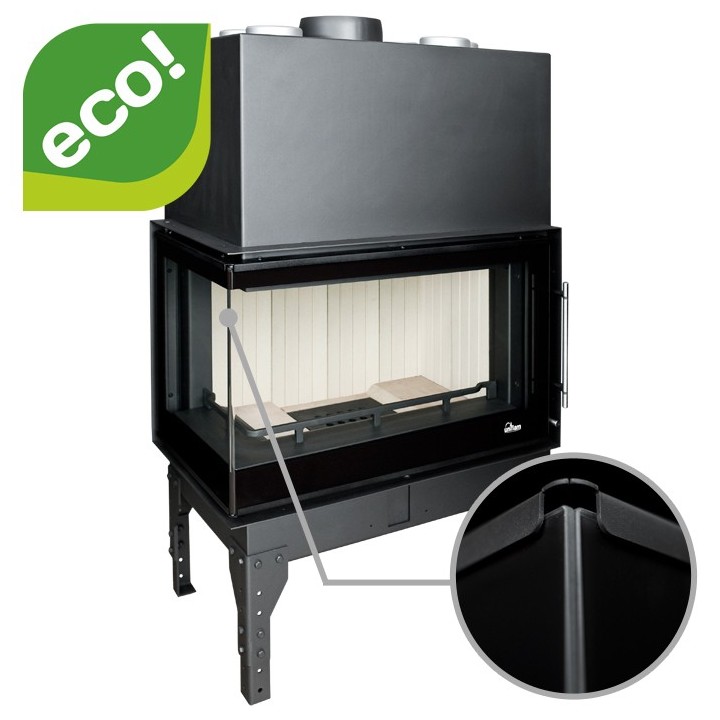

- left corner glasspane (joint)
- vitroceramic windowpane decorated with black trimming
- airwash system
- gasket with shape memory
- vermiculite deflectors
- steel heat exchangers
- wood fence
- ashbox
- fire grate
- adjustable legs
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm BImSchV2
- compliant with the norm EN 13229
- certificate CE
- Energy class: A+
- made in: Poland

Advantages of the UNIFLAM EVO range

Construction
The Uniflam EVO line is made of high quality materials – Steel, Shamotte and cast iron. The combustion chamber is tiled with RATH Shamotte plates. The special system of heat exchangers and deflectors ensures a high efficiency. Additionally, the insert is equipped with adjustable legs, thank to which the installation is quick and easy.

Perfect for low energy houses with mechanical ventilation
The Uniflam EVO fireplace inserts thanks to its construction can be used in low-energy houses. The hot air distributor enables the connection of the warm air ducts directy to the fireplace what guarantees effective and economical heating.

Direct air supply from outside
The Uniflam EVO line is equipped with a direct air supply system. The connection is placed beneath the combustion chamber. The air supply is adjusted by the handle placed at the bottom of the facade. The air is then directd under the fire grate and the glass creating a special air-wash system, thank to which the glass stays clean.

Easy maintenance
The spacious ashbox and the cast iron fire grate as well as the effective air wash system make the maintenance easy.

Wide fire vision
The modern steel facade and wide glass with a black decorative trimming provide a perfect vision of fire. The stainless steel handles give the insert a modern look.
