Insert UNIFLAM 660 DURO right corner glasspane ref. 837-008

Parameters:
- nominal power: 10 kW
- heating efficiency: 81%
- average temperature of the combustion gases: 236 °C
- particulate emission(PM): 12 mg/m³
- (CO) emission: 1123 mg/m³
- organic gaseous compounds emission (OGC): 45 mg/m³
- nitrogen emission (NOx): 47 mg/m³
- max. length of wooden logs: 35 cm
- outlet of the combustion gases diameter: 200 mm
- air supply: Ø125 mm
- hot air distribution: 4 x Ø125 mm
- fuel: wooden logs
- weight: 216 kg

Equipment:
- combustion chamber laid out with chammotte
- compiliant for houses with heat recovery and DGP
- direct air supply from outside
- air supply regulation
- windowpane decorated with black trimming
- hot air distributor with 4 outlets
- air flow on the glass
- gasket with shape memory
- vermiculite deflectors
- steel exchangers
- wood limiter
- ashbox
- fire grate
- adjustable legs

Warranty and certificates:
- 5 year guarantee
- energy class: A+
- certificate CE
- compiliant with ECOPROJECT
- compiliant with BlmschV 2
- compiliant with EN 13229
- manufactured: Poland

Benefis of UNIFLAM DURO:

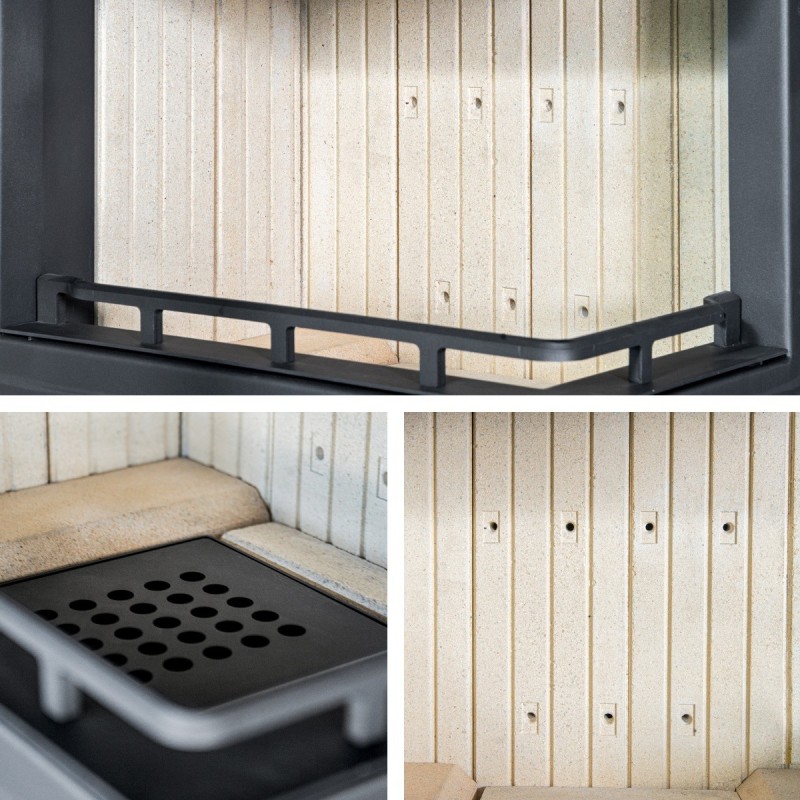

• Combustion chamber laid out with chammotte increases combustion temperature and keeps heat then returned it after extinguished.
• Special three vermiculite deflectors system extends combustion way to the chimney. This procedure gives back additional heat and increases efficiency.
• Uniflam 660 Duro is adapted for energy saving houses equipped in heat recovery ventilation.
• The air distribution system (under the grate, on the glass, and the rear wall) is smoothly adjustable, allowing for proper air distribution during ignition and maintaining the fire in continuous operation mode.
• The air curtain is responsible for keeping the clean glass effect and promotes the combustion of exhaust gases, resulting in high device efficiency.
• The secondary combustion system, which involves burning gases and particles, occurs by injecting air into the firebox through holes in the rear wall. This process provides complete combustion, increases the efficiency of the insert, and reduces the pollutant emissions.
• The insert housing serves as an air distributor. The steel distributor of hot air facilitates connecting the insert to the system of chanels distribuing warm air.
• A modern facade and a large glass with a black frame trim provide an ideal vision of the fire. The insert is equipped in corner glasspane contains front glass and right corner glass. An insert's door are side opened.
• The memory-shaped elastic seal effectively gasket the insert door and is more durable than standard seals, prevents from seasonal replacements.

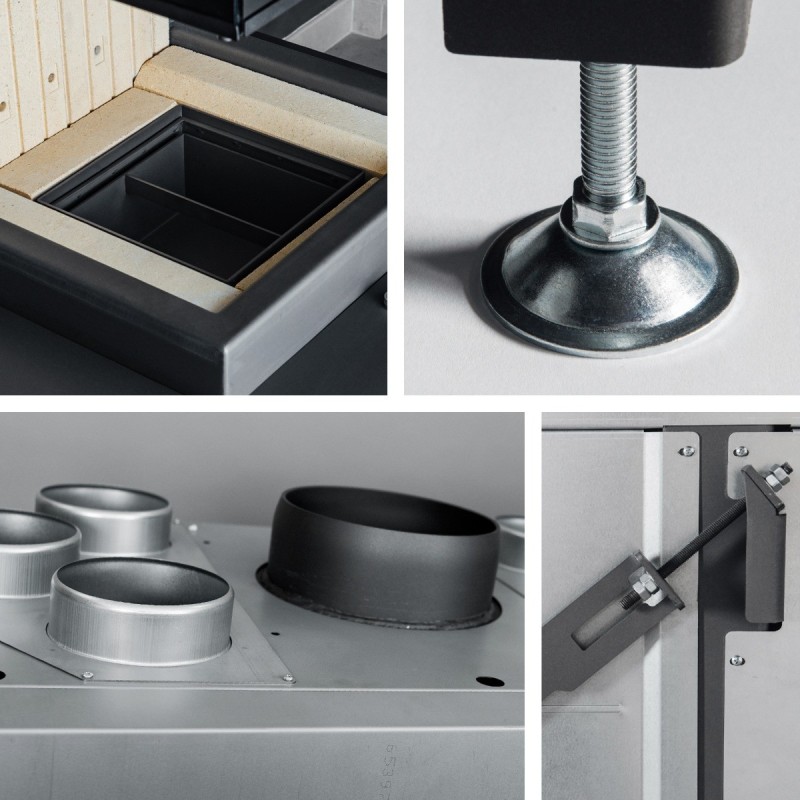

• Adjustable legs makes installation easier.
• The wood limiter prevents burning wooden logs from sliding on the glass.
• A capacious ashbox and grill facilitate ash removal.
• A convinient stainless steel handle.
