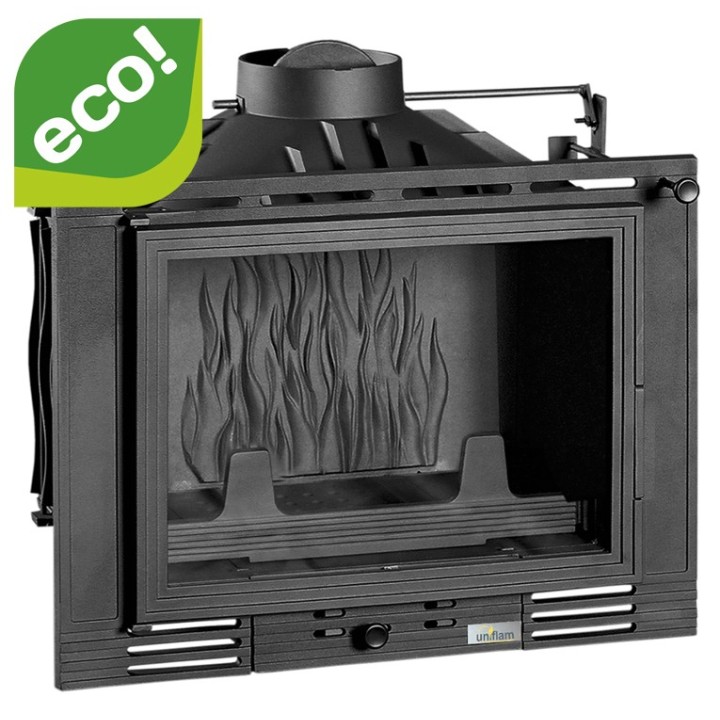

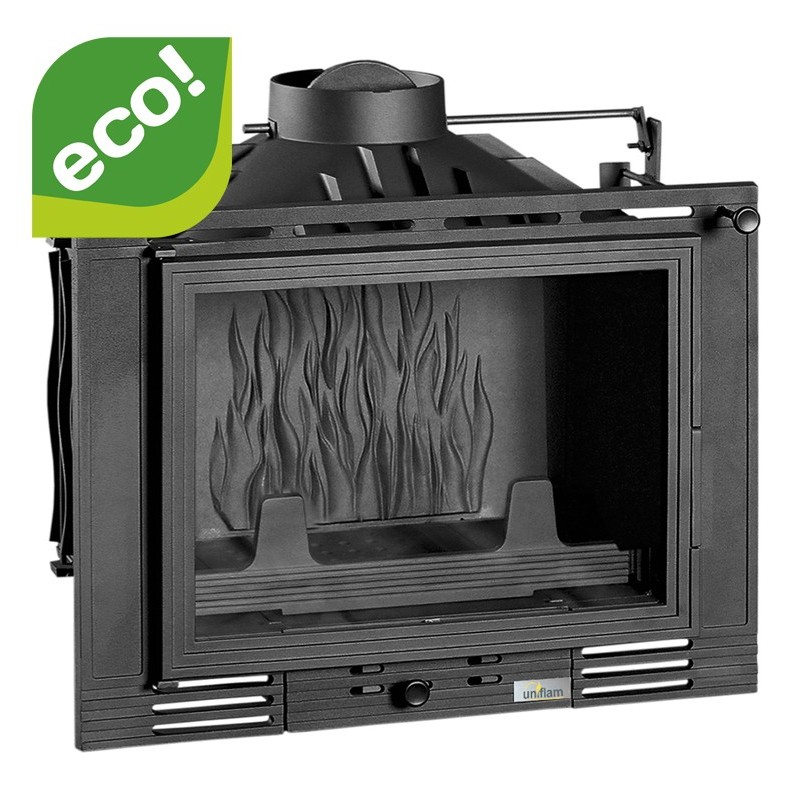

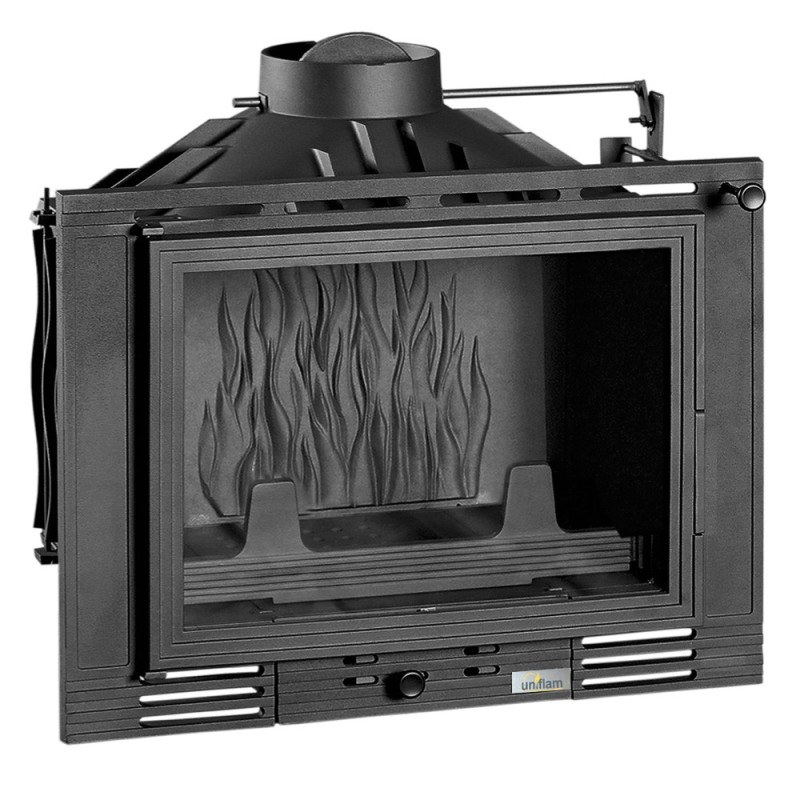

Insert UNIFLAM 700 ECO with clap, air supply ref. 907-675-DP

Cast-iron Insert UNIFLAM 700 ECO with clap, air supply ref. 907-675-DP
- nominal power: 8 kW
- efficiency: 76%
- average CO emission: 0,10%
- average temperature of the combustion gases: 319 °C
- air supply: Ø 100mm / 150x50 mm
- max. length of wood logs: 50 cm
- outlet of the combustion gases diameter: 180 mm
- weight: 98 kg

- direct air supply from outside
- clap
- primary air supply regulation
- deflector
- ashbox
- grill
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm BImSchV2
- compliant with the norm EN 13229
- certificate CE
- certificate FLAMME VERTE
- Energy class: A
- manufacturer: UNIFLAM - France

The insert is equipped with a an outside air supply system due to a special moulder mounted (comes with the insert). There is a option to connect a rectangular 150x50 mm ventilation duct or a ventilation pipe with a diameter of 100mm.
