RT-08K Kominek Plus Controller Titanium Design

RT-08K Kominek Plus Controller Titanium Design

SKU: RT-08K-Kominek-Plus-TD

Limited availability.
To find out the delivery date, please contact us

Operating temp. range: 0 / + 40 °C
Power consumption: 4 W
Power supply: 230 V
Dimensions W x H x D: 148 x 80 x 55 mm
Number of water temperature sensors: 3
Number of water temperature sensor inputs: 3
Number of potential-free control outputs: 1
Number of pump control outputs: 3 * 250W / 230V / 50 Hz
Maximum connected load: 750 W

Microprocessor-based temperature controller for water jacket fireplaces. Equipped with three temperature sensors and supports up to three pumps, including one DHW charging pump (DHW priority). Also available in a surface-mounted version.

€251.50

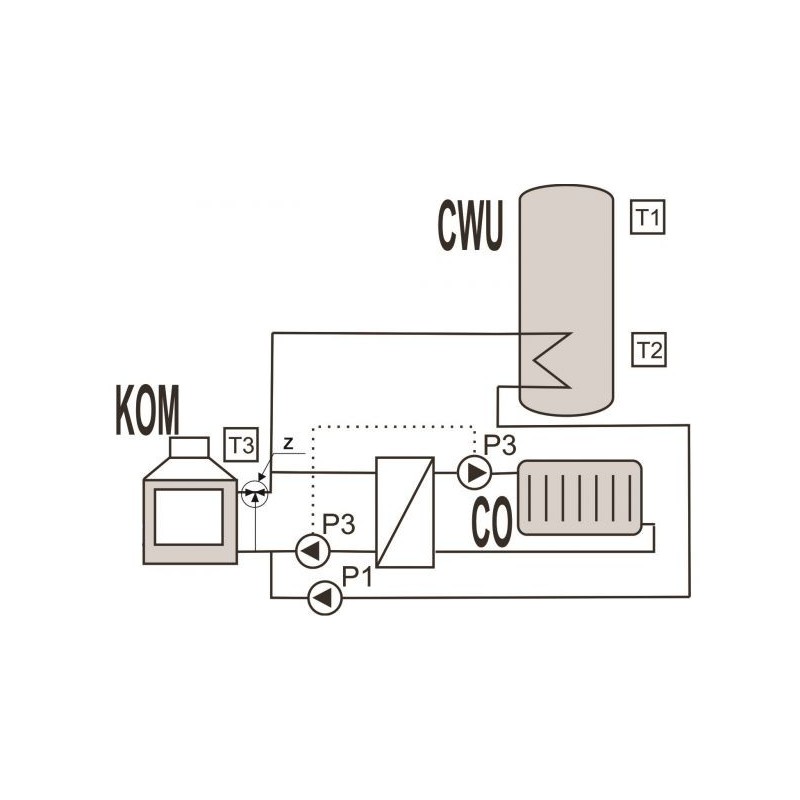

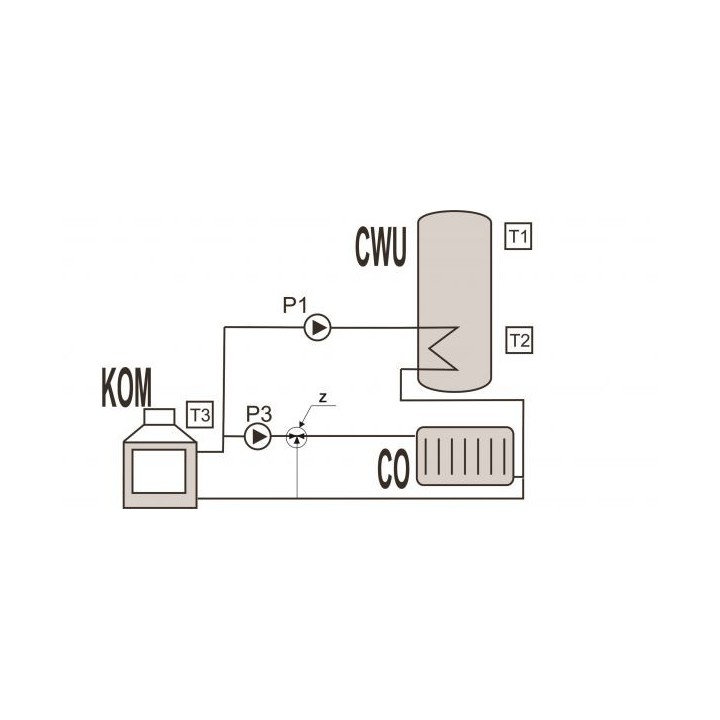

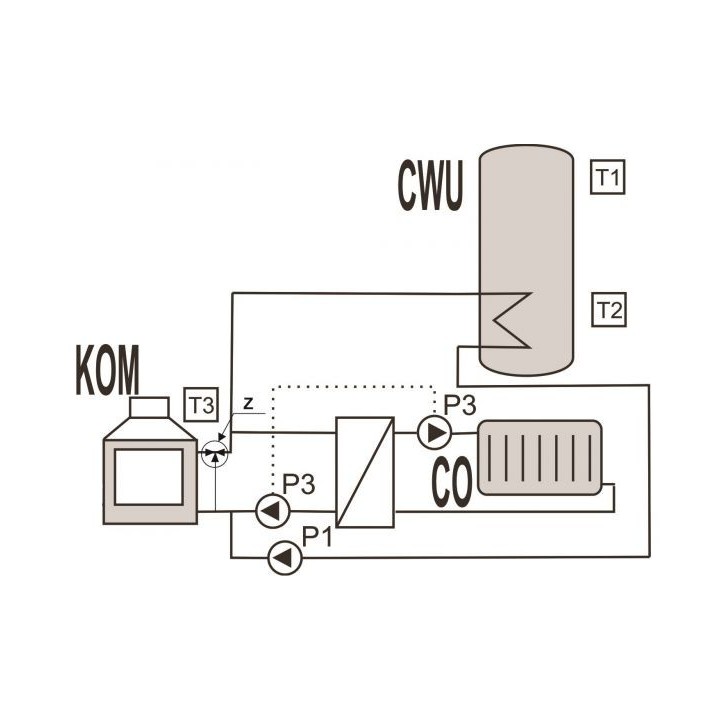

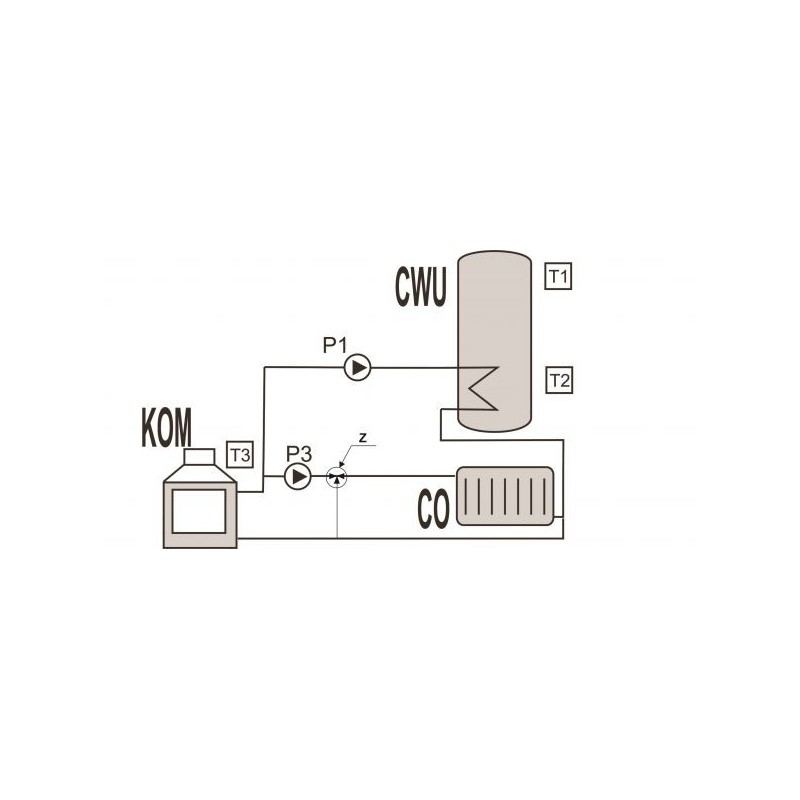

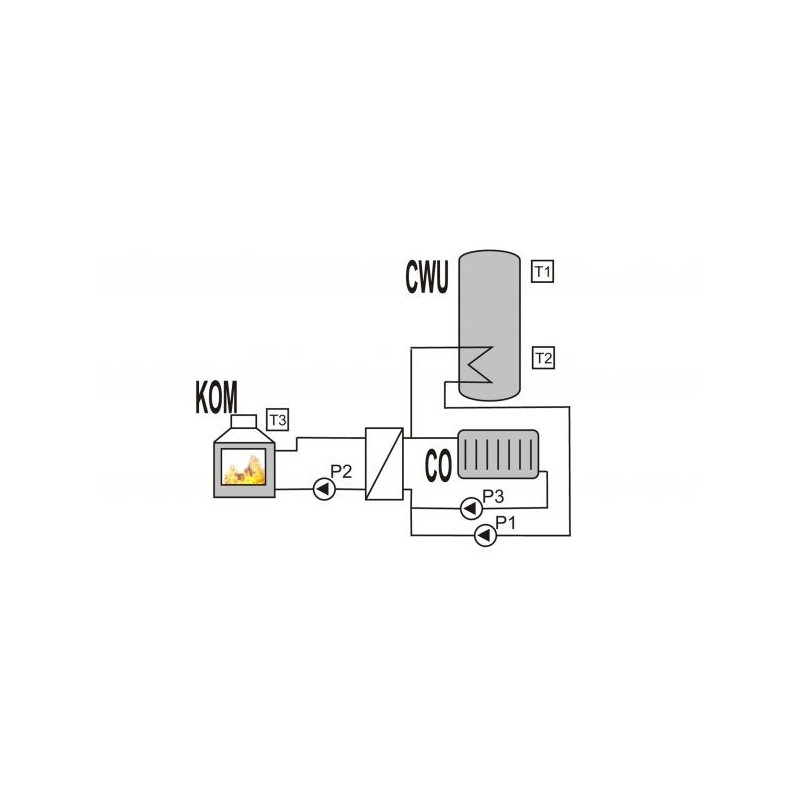

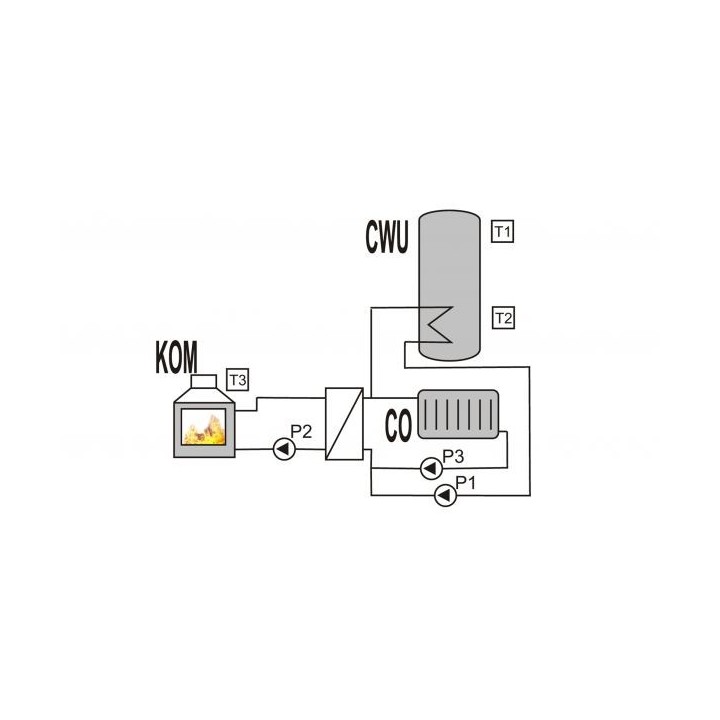

RT-08K Kominek Plus Titanium Design – controller designed for heating systems powered by a water jacket fireplace, providing automatic control of two central heating circulation pumps and one domestic hot water (DHW) charging pump.

The device is equipped with three water temperature sensors – one main sensor for measuring the temperature in the fireplace water jacket and two sensors for the DHW system.
It does not control the air supply to the firebox – no damper control available.

Warranty: 24 months.
Technical support also available after the warranty period!

Advantages of using the RT-08K Kominek Plus controller:
– Comfort and safety.
– Control of the DHW pump operation.
– Control of two circulation pumps.
– Function for blocking another heat source when the fireplace supplies heat to the system.
– Integrated zone thermostat function.
– Various operating modes for the DHW pump.
– Memory backup in case of power failure, restoring previous settings.
– Multiple language versions available.

The set includes:

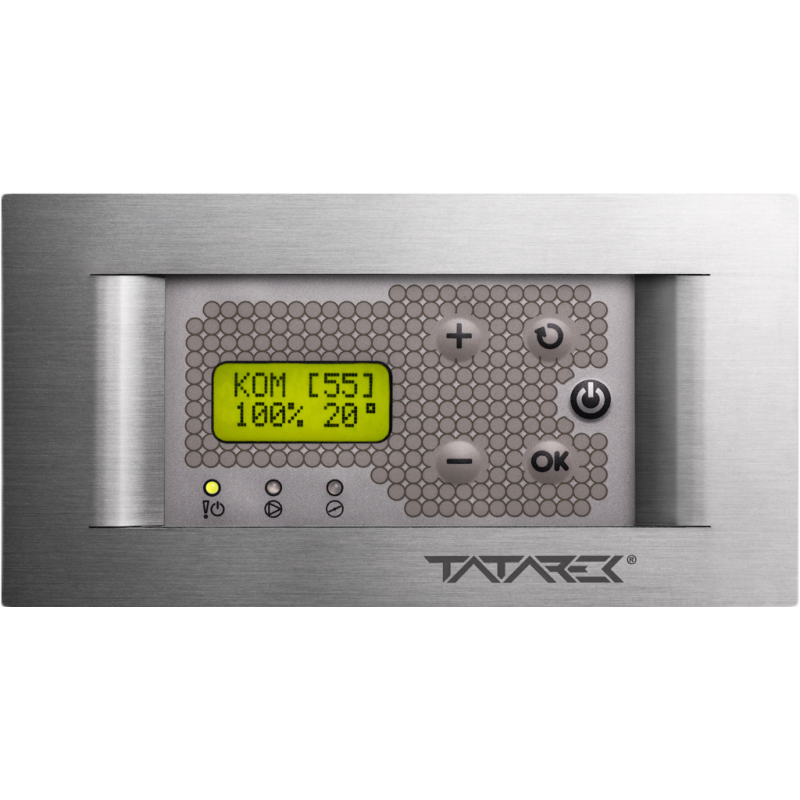

– Controller with LCD display
– Three water temperature sensors
– Mounting box

Brand	Tatarek
Reference	RT-08K-Kominek-Plus-TD
Weight	0,20 kg
Operating temp. range	0 / + 40 °C
Power consumption	4 W
Power supply	230 V
Dimensions W x H x D	148 x 80 x 55 mm
Number of water temperature sensors	3
Number of water temperature sensor inputs	3
Number of potential-free control outputs	1
Number of pump control outputs	3 * 250W / 230V / 50 Hz
Maximum connected load	750 W
