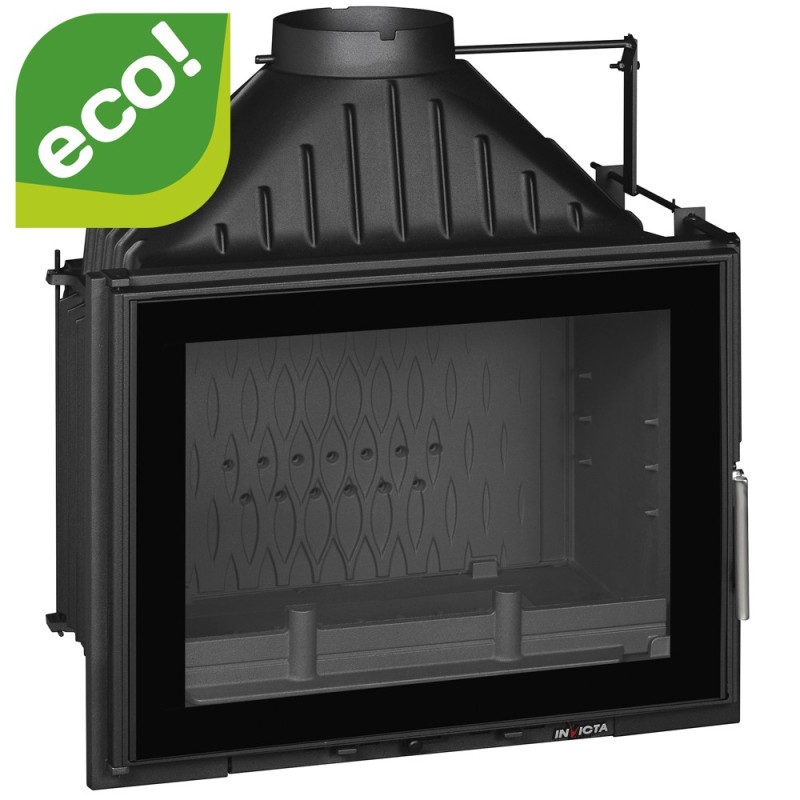

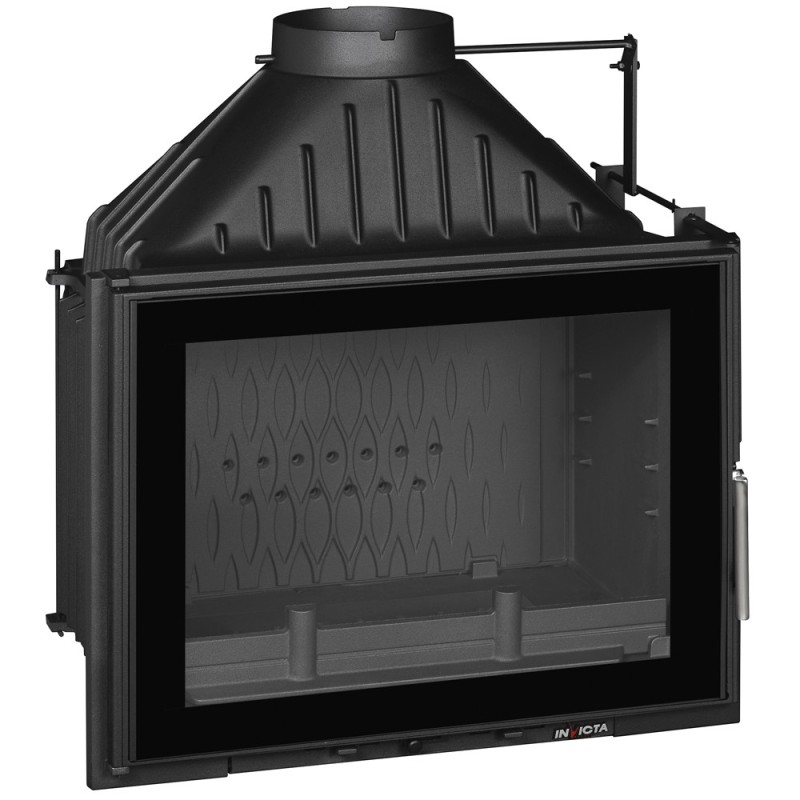

Insert INVICTA 700 GRAND ANGLE ECO with clap ref. 9270-73

Cast-iron insert INVICTA 700 GRAND ANGLE ECO with clap ref. 9270-73
- nominal power: 12 kW
- efficiency: 77%
- average CO emission: 0,11%
- average temperature of the combustion gases: 310 °C
- max. length of wood logs: 50 cm
- outlet of the combustion gases diameter: 200 mm
- weight: 133 kg

- clap
- secondary combustion system
- primary air supply regulation
- vitroceramic windowpane decorated with black trimming
- deflector
- ashbox
- grill
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm EN 13229
- certificate CE
- certificate FLAMME VERTE
- manufacturer: INVICTA- France

Advantages of the Invicta Grand Angle fireplace insert

Clap
The clap allows to adjust the chimney draft and control the chimney burning rate. The is placed in the upper part of the insert’s facade.

Easy use
Spacious, slide-out ashtray, cast iron grate and efficient air curtain system make the exploitation and maintenance of such a fireplace insert easy and time-saving.

Wide view of burning wood
Large glasspane with black decoration provide an ideal vision of fire.
