Insert INVICTA 700 COMPACT ECO with clap, air supply ref. 9274-75-DP

SKU: 9274-75-DP
Invicta
Limited availability.
To find out the delivery date, please contact us
  • Nominal power: 12 kW
  • Efficiency: 77%
  • Average flue gas temperature: 310 °C
  • Max. length of wood billets: 50 cm
  • Air supply: Ø 100mm or 150x50cm
  • Exhaust outlet diameter: 200mm
  • Fuel: wood
  • Country of production: France
  • Ecodesign: YES
  • Color: anthracite
  • Workmanship: cast iron
  • Warranty period: 5 years

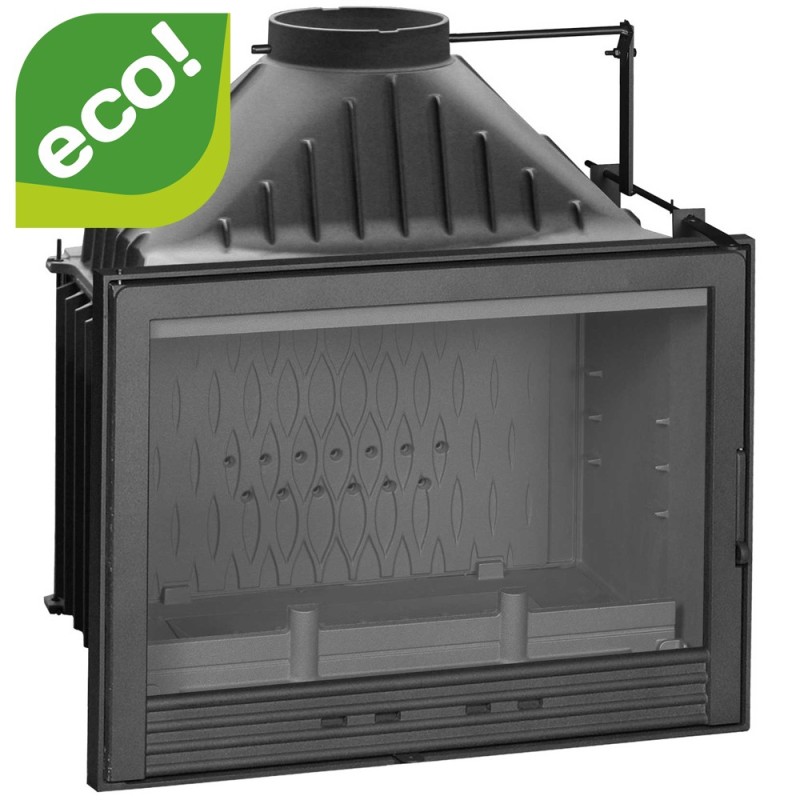

Cast-iron Insert INVICTA 700 COMPACT ECO with clap, air supply ref. 9274-75-DP
- nominal power: 12 kW
- direct air supply from outside
- 5 year guarantee
- compliant with the norm ECO DESIGN

€1,176.24

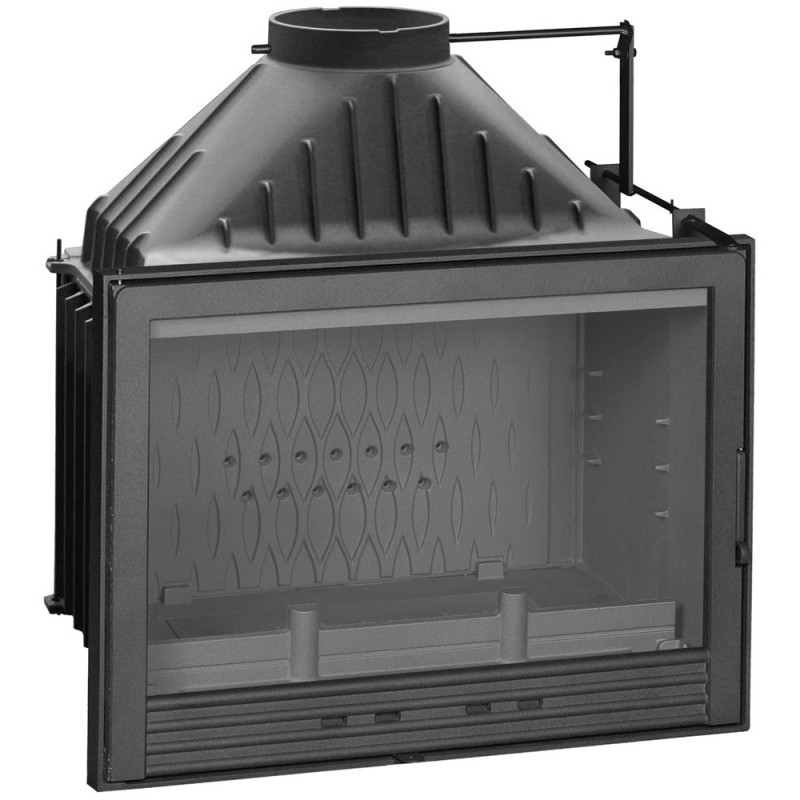

Cast-iron Insert INVICTA 700 COMPACT ECO with clap, air supply ref. 9274-75-DP
- nominal power: 12 kW
- efficiency: 77%
- average CO emission: 0,11%
- average temperature of the combustion gases: 310 °C
- max. length of wood logs: 50 cm
- air supply: Ø100 mm / 150x50 mm
- outlet of the combustion gases diameter: 200 mm
- weight: 128 kg

- clap
- direct air supply from outside
- secondary combustion system
- primary air supply regulation
- deflector
- ashbox
- grill
- fuel: wooden logs
- 5 year guarantee
- compliant with the norm ECO DESIGN
- compliant with the norm EN 13229
- certificate CE
- Energy class: A
- certificate FLAMME VERTE
- manufacturer: INVICTA- France

The insert is equipped with a an outside air supply system due to a special moulder mounted (comes with the insert). There is a option to connect a rectangular 150x50 mm ventilation duct or a ventilation pipe with a diameter of 100mm.

Brand
Reference 9274-75-DP
Nominal power 12 kW
Efficiency 77%
Average flue gas temperature 310 °C
Max. length of wood billets 50 cm
Air supply Ø 100mm or 150x50cm
Exhaust outlet diameter 200mm
Fuel wood
Country of production France
Ecodesign YES
Color anthracite
Workmanship cast iron
Warranty period 5 years
